LED按鈕開關為按鈕開關+LED的復合式按鈕開關，開關功能件內部帶有LED指示燈，既能準確指示開關通斷狀態，同時又非常方便用戶在黑暗中尋找開關位置。它的開和關的操作都在同一位置，手按松開后翹板自動恢復平整狀態，手感更好，而且壽命更長。

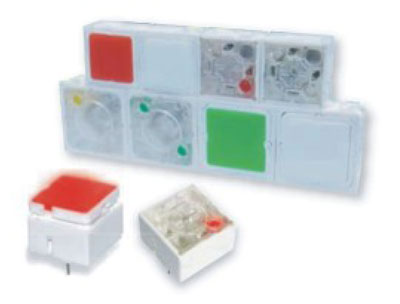

照明按鍵開關R2092

• Rating：100mA max,42 VAC/DC

• Contact Resistance：100mΩ max.(initial)

• Insulation Resistance：100MΩ min

• Dielectric Strength：1,000 VAC

• Force：3N±0.75N

• Travel：0.6±0.2mm

• Operating Temperature Range：-25℃ ~+ 70℃

• Mechanical Life：1,000,000 cycles

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Force	Travel	Operating Temperature	Mechanical Life	PDF下載
R2092-5A0	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-5D0	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-5B	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-5C	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-9A	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-9B	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
R2092-9C	100mA max,42 VAC/DC	100mΩ max.(initial)	100MΩ min	1,000 VAC	3N±0.75N	0.6±0.2mm	-25℃ ~+ 70℃	1,000,000 cycles	暫無
