輕觸開關又叫按鍵開關，使用時以滿足操作力的條件向開關操作方向施壓開關功能閉合接通，當撤銷壓力時開關即斷開，其內部結構是靠金屬彈片受力變化來實現通斷的。

輕觸開關由：嵌件、基座、彈片、按鈕、蓋板組成其中防水類輕觸開關在彈片上加一層聚酰亞胺薄膜，輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢。

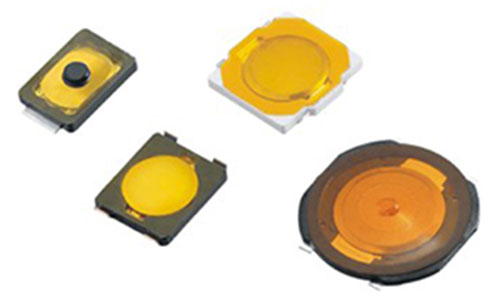

超薄膜輕觸開關R11

• Rating：12VDC 50mA

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance ：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：180gf 260gf

• Travel：0.25mm

• Life：100,000~300,000 cycles

• Operating Temperature：-30℃ ~80℃

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Operating Temperature	PDF下載
R11-2428	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-2630	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-2616	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-2030	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-3131	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-3131A	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-3738	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-4545	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-4836	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-4827	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
R11-74073	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	180gf 260gf	0.25mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
