輕觸開關又叫按鍵開關，使用時以滿足操作力的條件向開關操作方向施壓開關功能閉合接通，當撤銷壓力時開關即斷開，其內部結構是靠金屬彈片受力變化來實現通斷的。

輕觸開關由：嵌件、基座、彈片、按鈕、蓋板組成其中防水類輕觸開關在彈片上加一層聚酰亞胺薄膜，輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢。

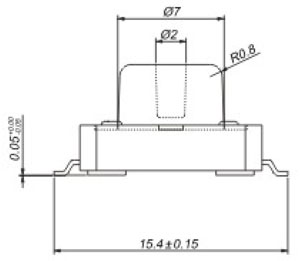

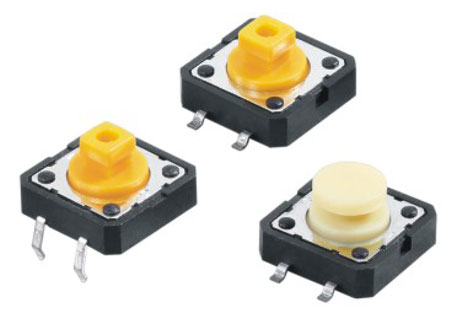

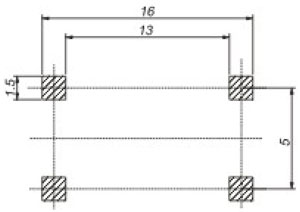

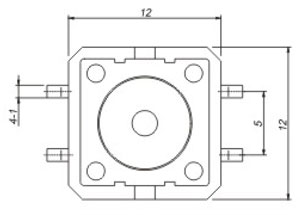

12*12MM輕觸開關RTS(M)(A)(T)(G)(P)-2

• Rating：12VDC 50mA

• Travel：0.3mm

• Life：100,000 cycles~1,000,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Temperature：-20℃ ~70℃

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Travel	Life	Operating Temperature	PDF下載
RTSM-241	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTS-21	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTS-242	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSM-24	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTS-2XX	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTS-24	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSM-242	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTSP-24	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
RTS-241	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	0.3mm	100,000 cycles~1,000,000 cycles	-20℃ ~70℃	暫無
