輕觸開關又叫按鍵開關，使用時以滿足操作力的條件向開關操作方向施壓開關功能閉合接通，當撤銷壓力時開關即斷開，其內部結構是靠金屬?gòu)椘芰ψ兓瘉?lái)實現通斷的。

輕觸開關由：嵌件、基座、彈片、按鈕、蓋板組成其中防水類輕觸開關在彈片上加一層聚酰亞胺薄膜，輕觸開關有接觸電阻荷小、精確的操作力誤差、規格多樣化等方面的優勢。

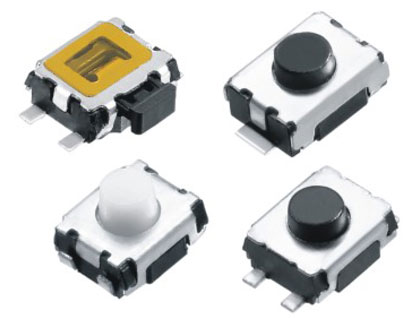

側貼輕觸開關RTP/RPTM

• Rating：12VDC 50mA

• Travel：0.13mm

• Life：100,000~300,000 cycles

• Contact Resistance：100mΩ MAX Initial

• Insulation Resistance：100mΩ min. 100VDC

• Dielectric Strength：250VAC(50/60Hz)FOR 1MIN

• Operating Force：A=180gf B=260gf

• Operating Temperature：-30℃ ~80℃

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Travel	Life	Operating Temperature	PDF下載
RTPA-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPB-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPU-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPS-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPF-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPML-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPMP-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPMN-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
RTPMU-A/B-V	12VDC 50mA	100mΩ MAX Initial	100mΩ min. 100VDC	250VAC(50/60Hz)FOR 1MIN	A=180gf B=260gf	0.13mm	100,000~300,000 cycles	-30℃ ~80℃	暫無
